Package org.netbeans.spi.debugger.jpda

JPDA Debugger SPIs defines support for Smart Stepping, Variables Filterring and filterring of all Debugger Views.

See:
Description

Class Summary

EditorContext Defines bridge to editor and src hierarchy.

SmartSteppingCallback Listens on stepping engine and defines classes / places the debugger can stop in.

SourcePathProvider Defines source path for debugger.

VariablesFilter This filter allows to change nodes in Locals View and Watches View for some concrete variable types.

VariablesFilterAdapter Default "empty" implementation of VariablesFilter returns original values (name, icon, fields, ...) for given variable.

Class Summary
EditorContext	Defines bridge to editor and src hierarchy.
SmartSteppingCallback	Listens on stepping engine and defines classes / places the debugger can stop in.
SourcePathProvider	Defines source path for debugger.
VariablesFilter	This filter allows to change nodes in Locals View and Watches View for some concrete variable types.
VariablesFilterAdapter	Default "empty" implementation of `VariablesFilter` returns original values (name, icon, fields, ...) for given variable.

Package org.netbeans.spi.debugger.jpda Description

JPDA Debugger SPIs defines support for Smart Stepping, Variables Filterring and filterring of all Debugger Views.

Smart Stepping Support

Interfaces involved:

SmartSteppingFilter : Defines list of class exclusion filters to be used to filter stepping in debugged session.
SmartSteppingCallback : Listens on stepping engine and defines classes / places the debugger can stop in.
JPDAThread : Represents context for SmartSteppingCallback (class name, method name, line number, ...).

Functionality supported:

Set of SmartSteppingCallback installed to JPDA Debugger defines scope for Step Into / Over / Out Actions. When user press some Step action, debugging is resumed. And when debugger stops on some new place (defined by class name and line number) set of SSListeners is asked if debugging should stop on this place or not (see

SmartSteppingCallback.stopHere(org.netbeans.spi.debugger.ContextProvider, org.netbeans.api.debugger.jpda.JPDAThread, org.netbeans.api.debugger.jpda.SmartSteppingFilter)

method). But this step-by-step method is slow. That is why the second, more powerfull method is here. SSListener can define some set of class exclusion patterns (like java.*, com.abba.Loader, ...). This set of exclusion patterns managed by SmartSteppingFilter class defines scope for Step Actions in more powerfull way.

JPDA Debugger installs one default SmartSteppingCallback. It excludes all sourceless classes (packages). So, if user does not have mounted sources for Java default libraries, this SSListener adds patterns like: java.*, javax.* and com.sun.*.

How to implement some new Smart Stepping Listener:

Lets say we have some xxx module which generates some code to standard Java classes. The generated code is always in some methods, which name is prefixed with "xxx" like:

class MyClass {
    private void xxxBigBusinessMethod () {
        // generated code is here!
    }

    public void userMethod () {
        // user code is here...
    }
}

And we would like to change standard JPDA debugger to not stop in generated methods.
In this case we should implement SmartSteppingCallback:

public class SmartSteppingCallbackImpl extends SmartSteppingCallback {

    public void initFilter (SmartSteppingFilter f) {}

    public boolean stopHere (JPDAThread thread, SmartSteppingFilter f) {
        String methodName = thread.getMethodName ();
        return !methodName.startsWith ("xxx");  // if method starts with "xxx" DO NOT stop there!
    }
}

And register full class name of our implementation (packagename.SmartSteppingCallback) in the file named:

META-INF\debugger\netbeans-JPDADebuggerEngine\org.netbeans.spi.debugger.jpda.SmartSteppingCallback

Variables Filterring Support

Filterring of Debugger Views

Content of all Debugger Views (like Breakpoints View, Threads View, ...) can be changed by viewmodel.*Filters. Folowing example shows how to filter Callstack View. We would hide all frames associated with some "java.*" packages. Some dummy node will be displayed in the place of this frames.

Step 1.

We should implement TreeModelFilter first:

public class CallStackFilter implements TreeModelFilter {

    public Object[] getChildren (TreeModel original, Object parent, int from, int to) {
        Object[] originalCh = original.getChildren (parent, from, to);
        int i, k = originalCh.length;
        ArrayList newCh = new ArrayList ();
        boolean in = false;
        for (i = 0; i < k; i++) {
            if (! (originalCh [i] instanceof CallStackFrame)) {
                newCh.add (originalCh [i]);

                continue;
            }
            CallStackFrame f = (CallStackFrame) originalCh [i];
            String className = f.getClassName ();
            if (className.startsWith ("java")) {
                if (!in) {
                    newCh.add (new JavaxSwing ());
                    in = true;
                }
            } else {
                in = false;
                newCh.add (f);
            }
        }
        return newCh.toArray ();
    }

    public Object getRoot (TreeModel original) {
        return original.getRoot ();
    }

    public boolean isLeaf (TreeModel original, Object node)
    throws UnknownTypeException {
        if (node instanceof JavaxSwing) return true;
        return original.isLeaf (node);
    }

    private static class JavaFrames {}
}

And register it in file:

Meta-inf\debugger\netbeans-JPDADebuggerEngine\CallStackView\org.netbeans.spi.viewmodel.TreeModelFilter

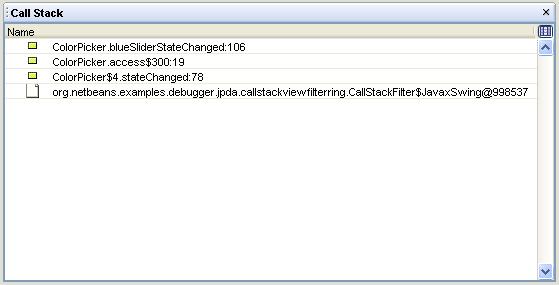

As you can see on the picture this Filter replaces some original frames by some dummy node.
Callstack Filterring 2

Step 2.

We should provide NodeModel (at least) for our new node type (JavaFrames) now.

public class CallStackFilter implements NodeModel {


    public String getDisplayName (Object node) throws UnknownTypeException {
        if (node instanceof JavaFrames)
            return "Java Callstack Frames";
        throw new UnknownTypeException (node);
    }

    public String getIconBase (Object node) throws UnknownTypeException {
        if (node instanceof JavaFrames)
            return "org/netbeans/examples/debugger/jpda/callstackviewfilterring/NonCurrentFrame";
        throw new UnknownTypeException (node);
    }

    public String getShortDescription (Object node) throws UnknownTypeException {
        if (node instanceof JavaFrames)
            return "Unimportant hidden callstack frames";
        throw new UnknownTypeException (node);
    }
}

And registration:

Meta-inf\debugger\netbeans-JPDADebuggerEngine\CallStackView\org.netbeans.spi.viewmodel.TreeModelFilter
